free shipping magnetic magnet slim fan magnetic pin backs

This product is a neodymium magnet, also known as NdFeB, Neo or NIB magnet, which is the most widely used type of rare-earth magnet. It has a block rectangular cuboid sheet shape and a super strong magnetism that can be used for various applications in consumer, industrial and technical fields. It is also resistant to extremly temperature up to 80°C, making it suitable for high-temperature environments. This product is made from an alloy of neodymium, iron and boron, with the highest magnetic properties of all permanent magnets. It can be customized to fit your specifications and needs. Order now and get the best quality and price for this product.
  • Hits :

    0
  • Updatetime :

    2023-11-08
  • Material :

    neodymium
  • Type :

    Segment/Tile/Arc
  • Feature :

    permanent
contact now
description

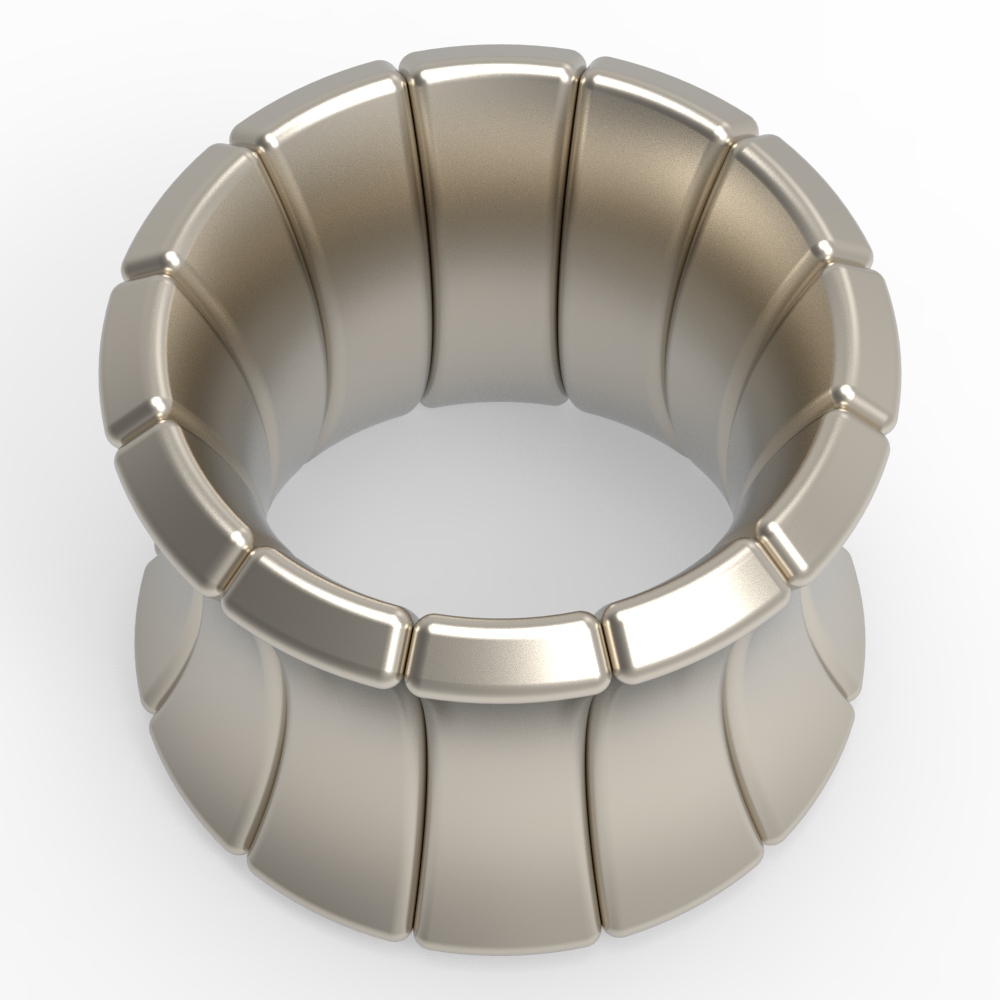

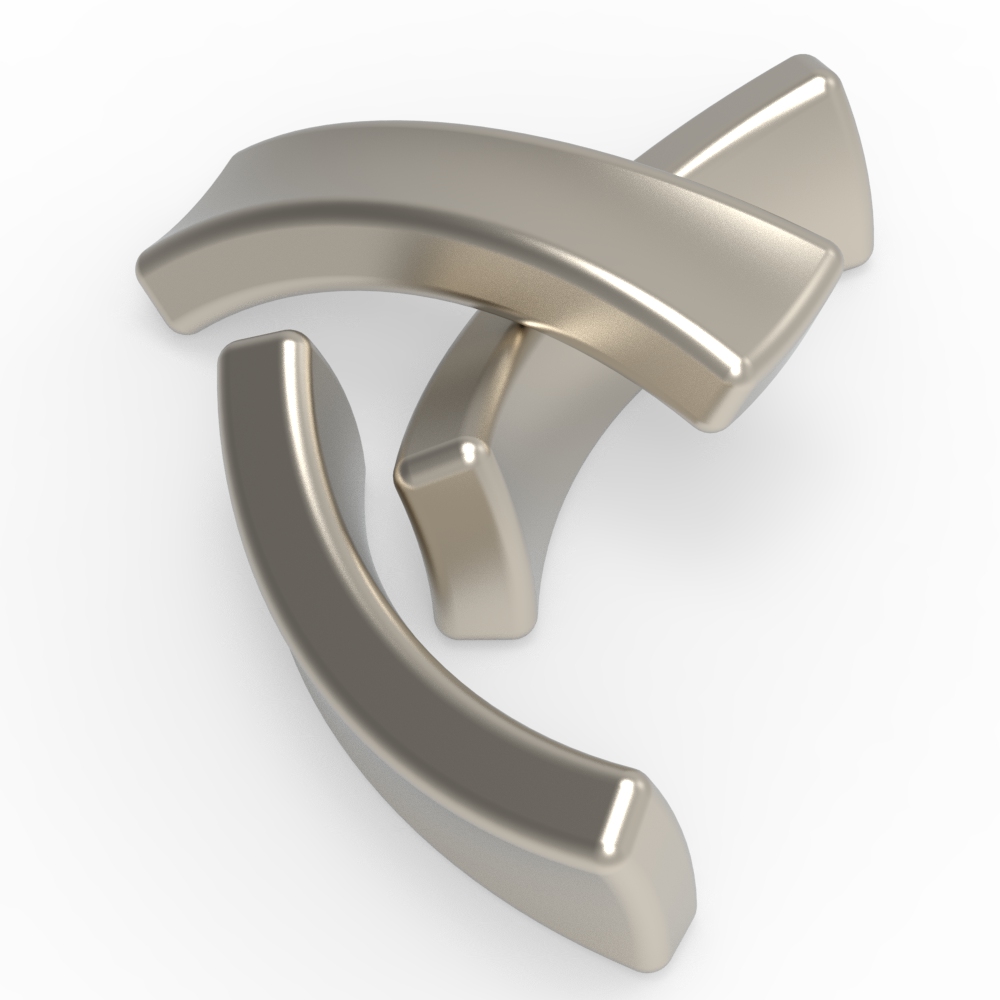

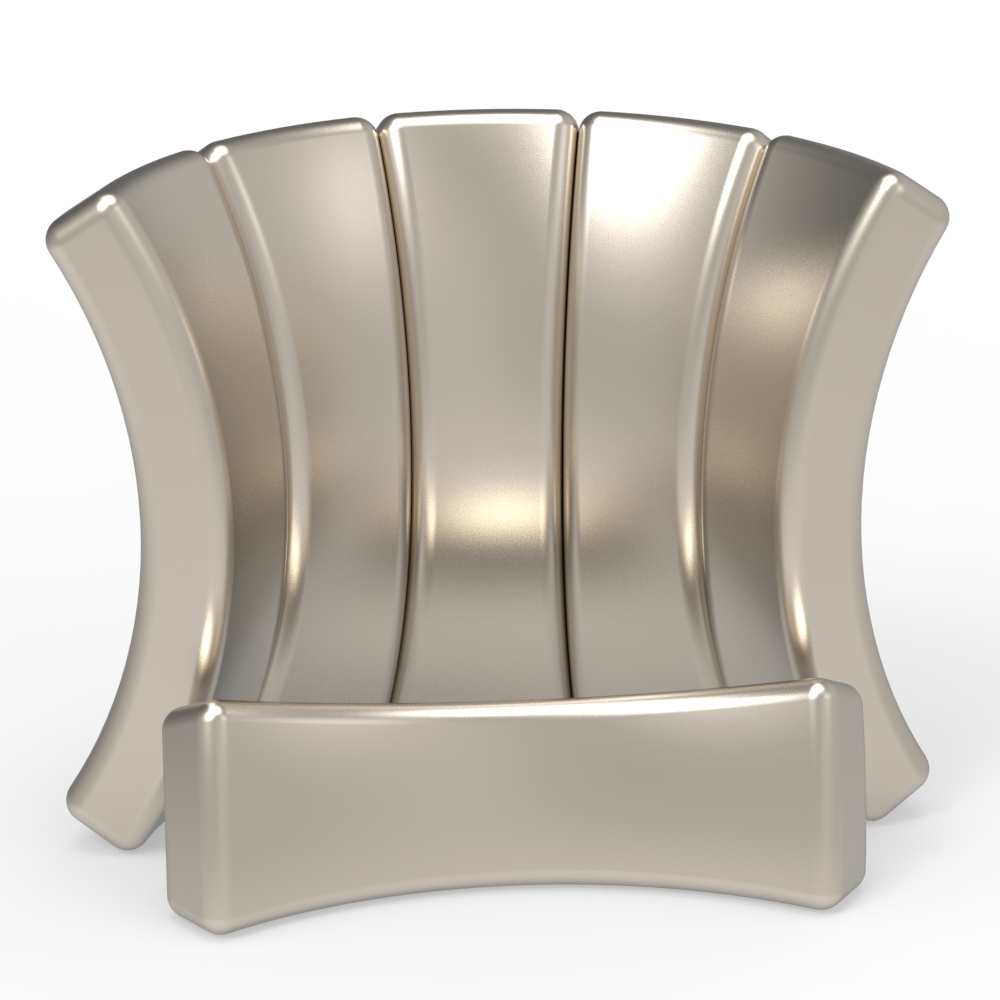

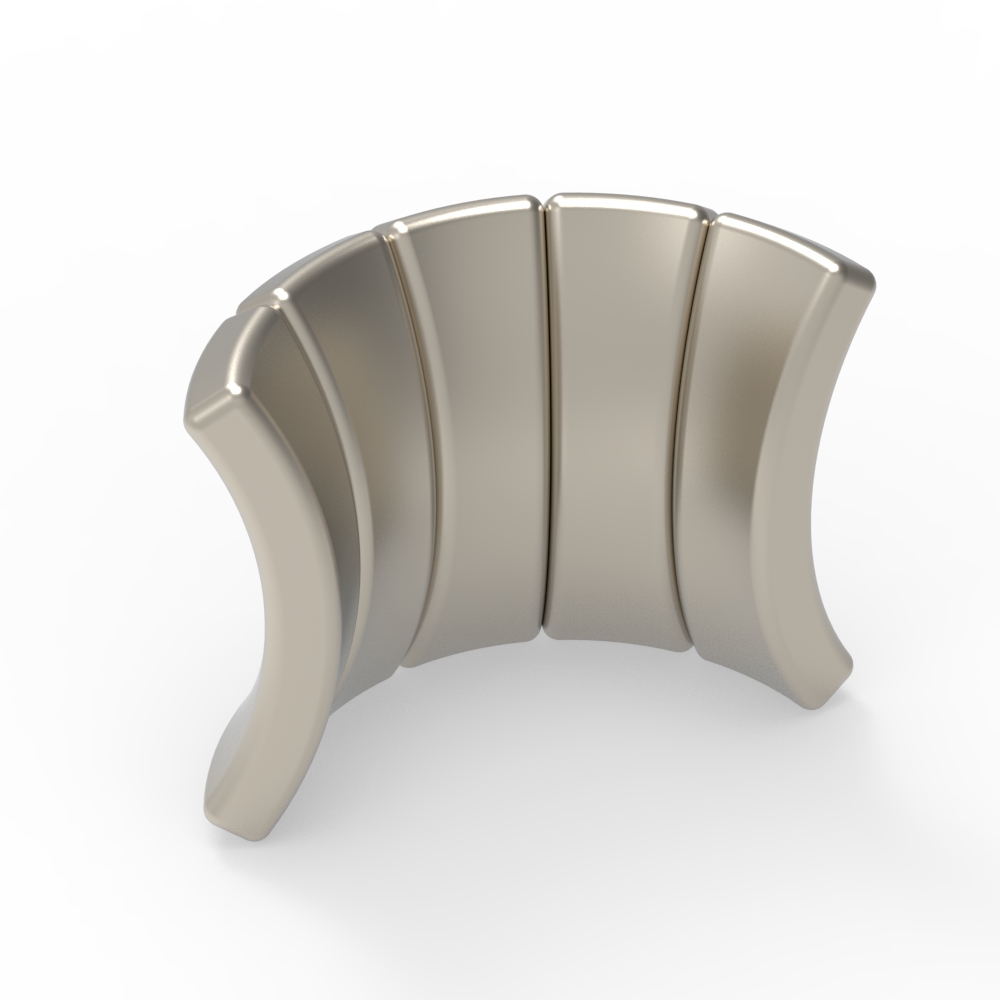

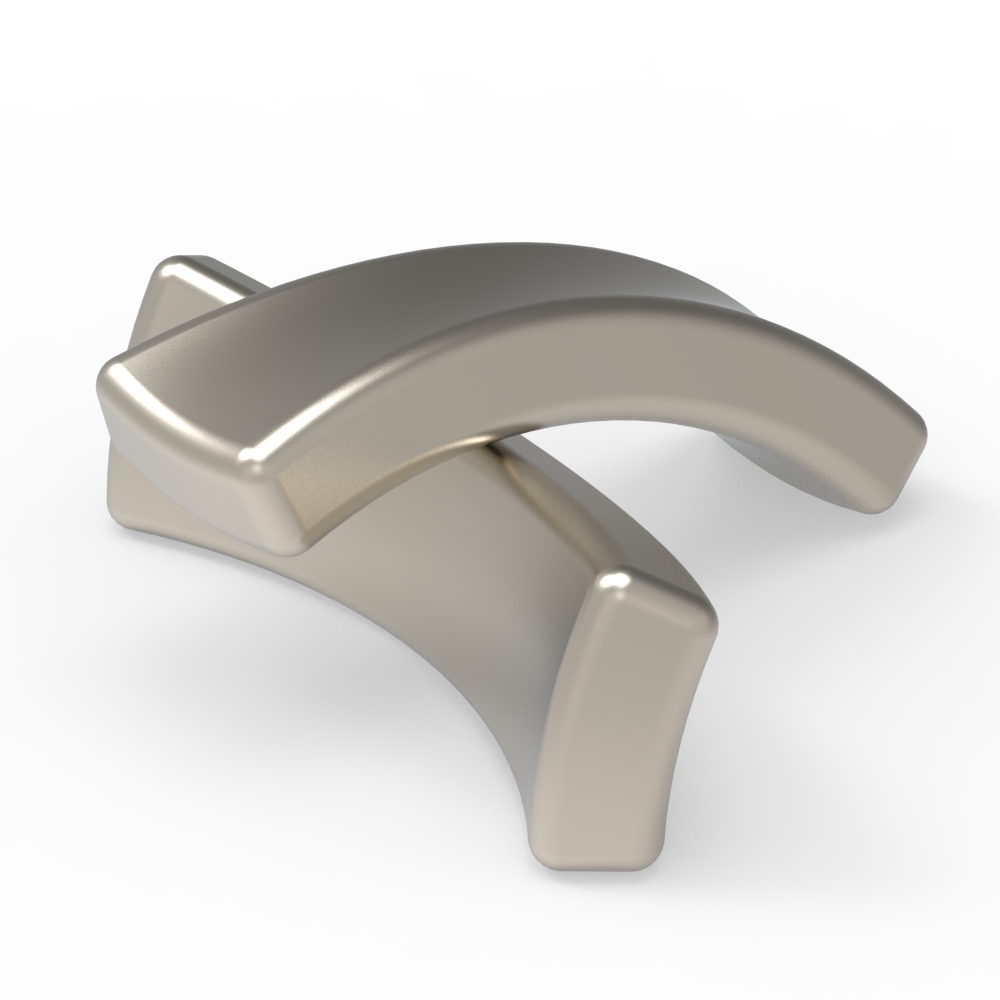

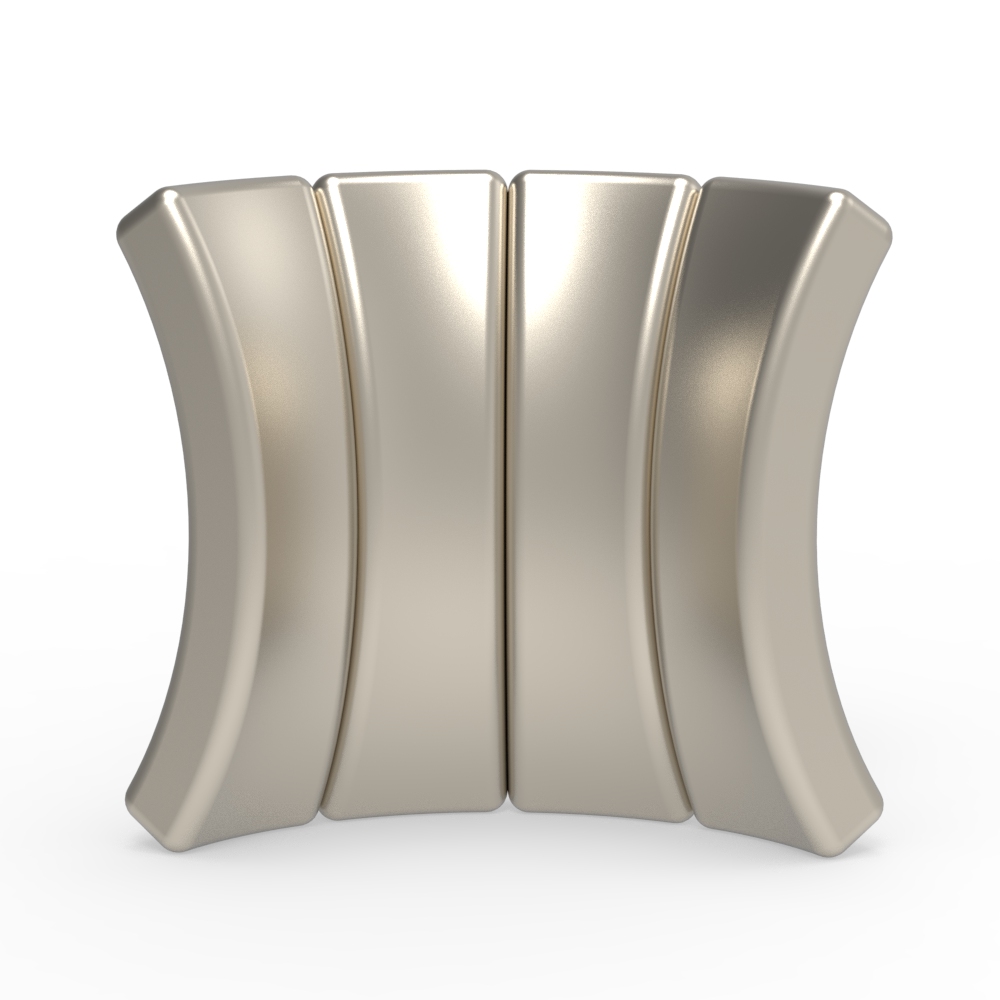

Segment/Tile/Arc shape neodymium NdFeB magnet
Normal Ambient Temperature, <80 celsius degrees
Grade: N30/N33/N35/N38/N40/N42/N45/N48/N50/N52/N54
ArcTile | N35 | OR45 x IR44 x H10 AD3mm 20° | 2332Gs 5.8lbs
ArcTile | N35 | OR55 x IR53 x H12 AD3.2mm 15° | 2318Gs 6.3lbs
ArcTile | N35 | OR65 x IR62 x H14 AD3.4mm 12° | 2335Gs 7.1lbs
ArcTile | N35 | OR75 x IR71 x H16 AD3.6mm 10° | 2371Gs 8lbs
ArcTile | N35 | OR85 x IR80 x H18 AD3.8mm 9° | 2366Gs 9.1lbs
Electroplating: Nickel/Epoxy/Zinc/Imitation Gold/18K Gold
Magnetizing: Thickness/Diametrical
Attach with: 3M VHB 4905/4910/Foam 1600T Adhesive

Product label Strong Magnets, Permanent Magnets, Neodymium Magnets
Production Capability 50 Tons per month
Customized Service Dimension, >200 units
Shape, >200 units
Package, >1000 boxes
Logo, >1000 units
Packing form 50-1000pcs per box, depends on sizes.
box size: 15x10x8cm
16 boxes per carton with isolated magnetic sheets.
Carton size: 38x26x22cm, 20kg
15x10x8cm, 5kg(smaller)
Shipping method International Express, Sea freight, Air freight
Lead time <1000 units, 7-15 days.
<10000 units, 15-25 days.
<100000 units, 25-30 days.
Accept payment method L/C, TT
Sample Available
